CWGS 400型擦窗机总体设计(含PROE三维图)

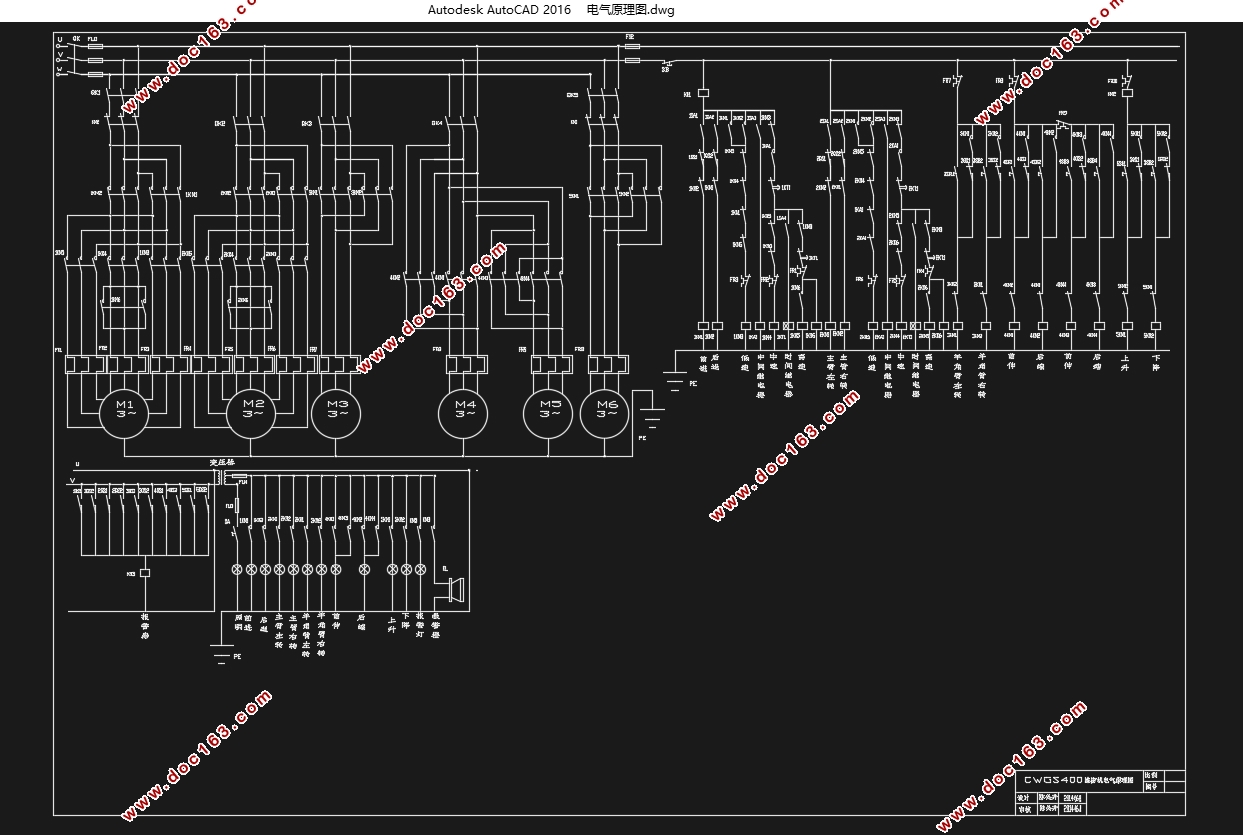

CWGS 400型擦窗机总体设计(含PROE三维图)(任务书,开题报告,论文说明书11900字,CAD电气原理图,Pro/E三维图)
摘要
随着高层建筑的出现，随着现代城市建筑的日益发展，作为一个城市、企业的象征的高层、综合性建筑的外饰面大多采用高级美观的装饰材料。为了使建筑物永保青春，减缓由于自然环境污染所造成的城市建筑的老化过程，其外墙的定期安全检修、维护、清洗越来越引起人们的高度重视。安全、实用、高效的外墙面清洗维护系统---擦窗机已经成为高档物业管理的一个必备设备。安装擦窗机是高楼外墙清洁发展方向，一些先进的国家已经发展到用无人操作擦窗机进行外墙清洁工作。应大力研究发展国产的擦窗机，降低成本，使擦窗机逐渐普及。
本课题针对擦窗机装置的继电器系统设计，主要研究计算了以下几个方面的内容：
1.对擦窗机进行了概述。
2.对擦窗机结构进行了阐述。
3.对屋面轨道式伸缩臂变幅擦窗机进行了总体布置和继电器系统设计。
关键词：建筑机械 擦窗机 单臂伸缩 继电器系统设计
The overall design of CWGS400Building Maintenance Unit
Abstract
With the emergence of the high-rise building, with the development of modern city construction, as a symbol of the city, facing outside enterprise high-level, comprehensive building mostly adopt advanced and beautiful decorative materials. In order to make the building eternal youth, slow due to the aging process in city building natural caused by environmental pollution, the wall of the regular safety inspection, maintenance, cleaning, more and more attention. Safe, practical, efficient wall surface cleaning and maintenance system, window cleaning machine has become a necessary equipment for high-grade property management. Install Building Maintenance Unit is clean development direction of exterior wall, some advanced countries has been developed to perform the wall clean withunmanned operation Building Maintenance Unit. Vigorous efforts should be made to study on the development of Building Maintenance Unit, the domestic cost, make the Building Maintenance Unit popularization.
The topic for the design of Building Maintenance Unit’s relay system, mainly analyze the following aspects:
1.TheBuilding Maintenance Unit were outlined.
2.TheBuilding Maintenance Unit structure are discussed.
3.On the roof rail type telescopic arm Building Maintenance Unit for design of general layout and relay system.
Keywords: Construction machinery；Building Maintenance Unit；Arm stretching； Relay system design
[来源：http://Doc163.com]
目录
摘要 I
Abstract II
第一章绪论 1
1.1擦窗机的发展概况 1
1.2擦窗机的定义、型式及其配置 3
1.2.1擦窗机编号方法 3
1.2.2轨道式擦窗机 4 [资料来源：http://www.doc163.com]
1.2.3 滑车式、插杆式擦窗机 6
1.2.4悬挂式擦窗机 7
1.2.5滑梯式擦窗机 8
1.3擦窗机的电气控制系统 9
1.4擦窗机的设计基本原则 10
第二章屋面轨道式伸缩臂变幅擦窗机的结构 11
2.1.擦窗机轨道 12
2.2行走机构 15
2.3伸缩吊臂 15
2.4卷扬系统 16
2.5回转机构 17
2.6羊角臂头装置 17
2.7安全锁 17
第三章擦窗机三维整体装配 19
3.1 Pro/e建模的特征 19
3.1.1参数化设计 19
3.1.2 特征建模 19
3.1.3数据库（全相关） 19
3.2整体建模装配 20
3.2.1各机构的组图 20
3.2.2总体装配图 21
第四章擦窗机继电器电气系统设计 23
[资料来源：Doc163.com]
4.1行走机构 23
4.2回转机构 24
4.2.1主回转机构 24
4.2.2臂头回转机构 25
4. 3伸缩机构 26
4. 4起升机构 27
结语 29
参考文献 30 [资料来源：http://www.doc163.com]
