带式输送机的设计(含CAD零件装配图)
资料介绍：

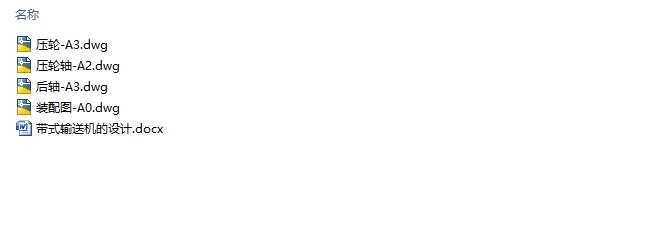

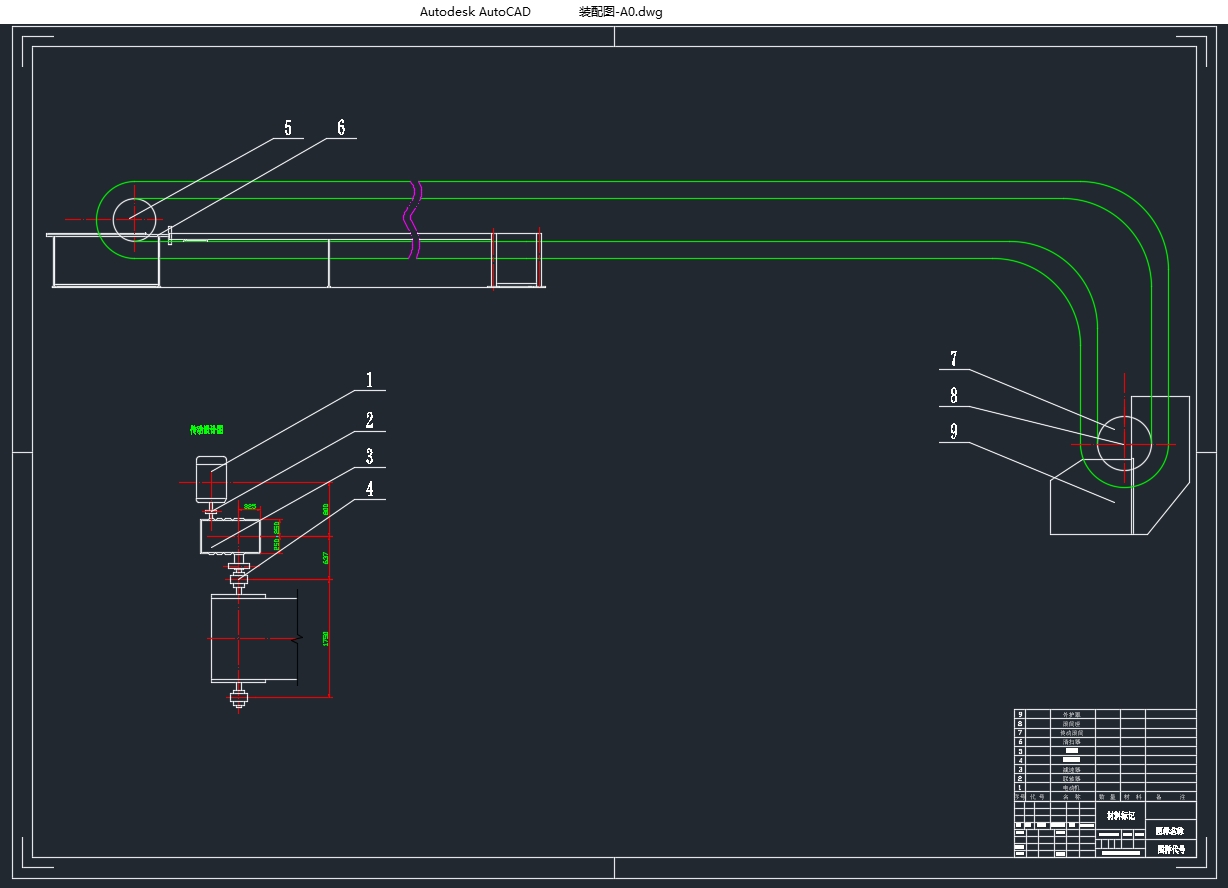

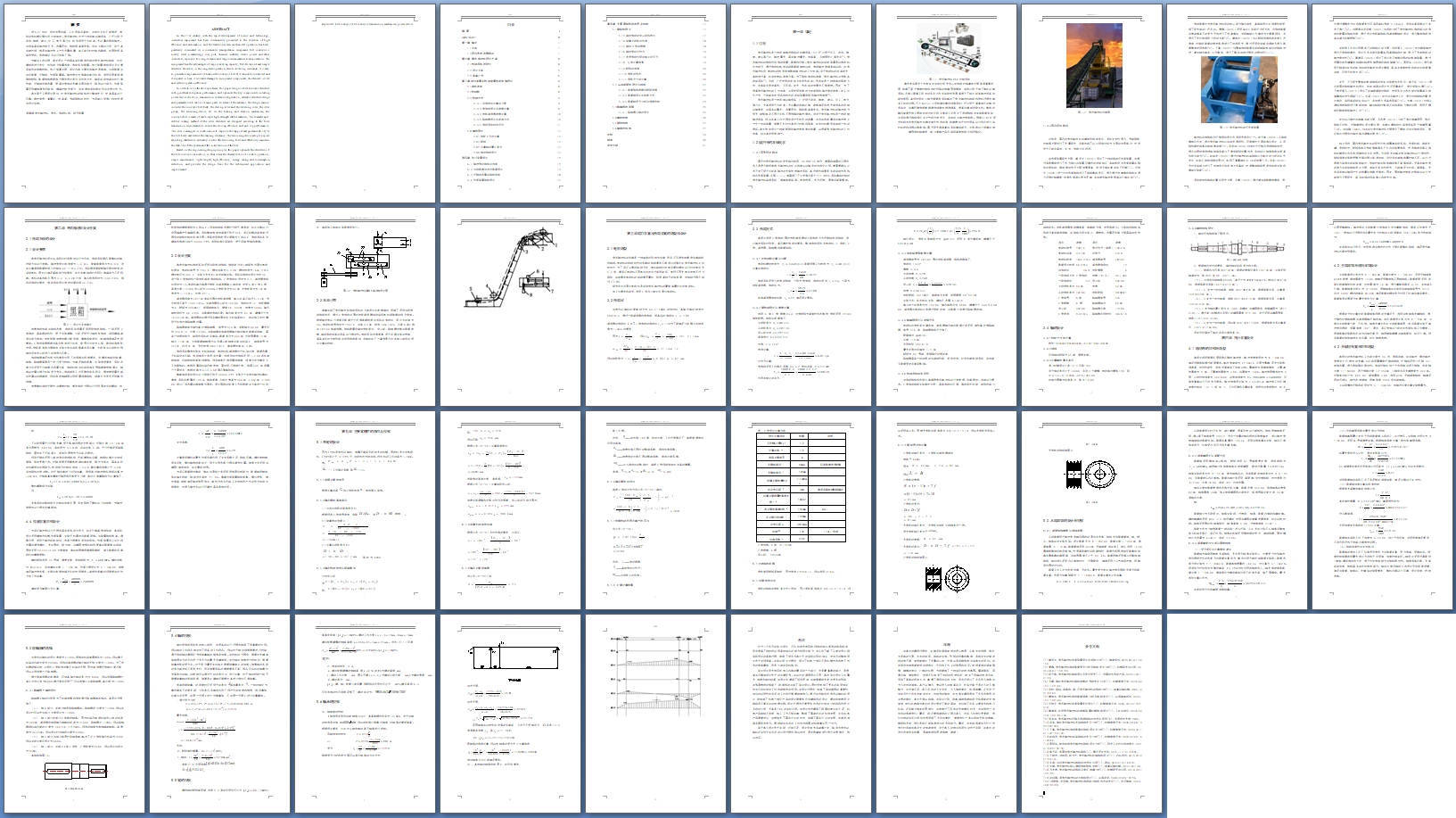

带式输送机的设计(含CAD零件装配图)(设计说明书12000字,CAD图4张)
摘 要
进入21世纪，科技发展迅猛，工业设备向高效、自动化方向不断推进，传统的半机械化操作逐步被淘汰。带式输送机作为一种连续运输设备，广泛应用于冶金、煤炭、港口、化工、电力等行业，特别适用于长距离、大运量的物料输送。该设备具有输送能力大、布置灵活、结构简单等优势。但在长期运行中，由于其连续性强，容易在输送带上产生大量热量，若不能及时控制和散热，将导致设备部件损坏、寿命缩短及运行效率下降。
为解决上述问题，本文设计一种具备良好散热性能的带式输送机结构，对关键部件进行优化，包括动力装置选型、传动系统配置、执行装置结构设计及主要零部件的参数校核。执行装置方面，设计内容主要包括输送带本体、主动滚筒与改向滚筒、托辊组、拉紧装置等。输送带作为承载与牵引机构，选用多层高强度橡胶材料；滚筒结构根据传力需求设计直径与包胶方式，确保驱动效率与防打滑性能；托辊组合理布置，提高对带体的支撑与导向能力，降低运行阻力；拉紧装置采用螺旋调节式结构，精确控制张紧力，有效维持系统稳定性与皮带初张力。
本文基于工程设计原则，对带式输送机的结构进行整体优化，使其具备运行可靠、维护简便、重量轻、效率高、节能降耗的特性，为后续应用推广和改进提供设计依据。
[资料来源：Doc163.com]
关键词带式输送机、带式、传动机构、动力装置
ABSTRACT
In the 21st century, with the rapid development of science and technology, industrial equipment has been continuously promoted in the direction of high efficiency and automation, and the traditional semi mechanized operation has been gradually eliminated. As a continuous transportation equipment, belt conveyor is widely used in metallurgy, coal, port, chemical industry, electric power and other industries, especially for long-distance and large volume material transportation. The equipment has the advantages of large conveying capacity, flexible layout and simple structure. However, in the long-term operation, due to its strong continuity, it is easy to generate a large amount of heat on the conveyor belt. If it cannot be controlled and dissipated in time, it will cause damage to equipment components, shorten service life and reduce operation efficiency.
In order to solve the above problems, this paper designs a belt conveyor structure with good heat dissipation performance, and optimizes the key components, including power device selection, transmission system configuration, actuator structure design and parameter verification of main parts. In terms of the actuator, the design mainly includes the conveyor belt body, the driving roller and the reversing roller, the idler group, the tensioning device, etc. As the bearing and traction mechanism, the conveyor belt is made of multi-layer high-strength rubber materials; The diameter and rubber coating method of the roller structure are designed according to the force transmission requirements to ensure the driving efficiency and anti slip performance; The idler is arranged in combination to improve the support and guidance ability to the belt body and reduce the running resistance; The tensioning device adopts a spiral adjusting structure to accurately control the tensioning force and effectively maintain the stability of the system and the initial tension of the belt.
[资料来源：http://doc163.com]
Based on the engineering design principles, this paper optimizes the structure of the belt conveyor as a whole, so that it has the characteristics of reliable operation, simple maintenance, light weight, high efficiency, energy saving and consumption reduction, and provides the design basis for the subsequent application and improvement.
Keywords: belt conveyor, belt conveyor, transmission mechanism, power device
设计要求
本带式输送机设计以实现长时间稳定运行为目标，传动系统需匹配整机的输送能力与运行速度。输送带设计线速度为1.0 m/s，配套滚筒直径为0.8 m，由此计算得到滚筒转速应控制在48 r/min左右。系统需选择能够输出稳定转速的驱动电机，同时应满足高起动力矩需求，防止负载起动时出现打滑或动力不足现象。电机功率选取范围为3.0–4.0 kW之间，输入转速设定为1500 r/min，结合总传动比需求，传动系统设计传动比需达到30左右。
[资料来源：http://Doc163.com]
目录
摘 要 I
ABSTRACT II
第一章 绪论 1
1.1引言 1
1.2国内外的发展现状 1
第二章 带式输送机设计方案 4
2.1传动系统的设计 4
2.2设计方案 5
[版权所有：http://DOC163.com]
2.3本章小节 6
第三章动力装置及传动装置的选型和设计 8
3.1电机选型 8
3.2传动比 8
3.3 传动方式 9
3.3.1 总传动比计算与分配 9
3.3.2 带传动设计与参数计算 9
3.3.3 齿轮减速器参数计算 10
3.3.4 联轴器设计与连接方式 10
3.3.5 传动系统综合评价 11
3.4 轴的设计 12
3.4.1链轮上力的计算 12
3.4.2材料 12
3.4.3计算轴的最小直径 12
3.4.4轴的结构设计 12
第四章 执行装置设计 13
4.1 输送带的结构与选型 13
4.2 主动滚筒与改向滚筒设计 13
4.3 托辊组布置与结构选型 14
4.4 拉紧装置结构设计 15
第五章 主要零部件的选用及校核 17
5.1带轮的设计 17 [资料来源：http://www.doc163.com]
5.1.3确定传动的中心距和带长 17
5.1.4验算主动轮的包角 18
5.1.5确定V带的根数 18
5.1.6确定带的初拉力 19
5.1.7求带传动作用在轴上的压力 19
5.1.8 V带计算结果 19
5.1.9材料的选择 20
5.1.10带轮的形式 20
5.1.11带轮尺寸的计算 20
5.2 从动滚筒的设计与校核 22
5.2.1 滚筒结构参数与材料选择 22
5.2.2 滚筒轴设计与装配方式 22
5.2.3 滚筒轴受力分析与强度校核 23
5.3联轴器的选择 25
5.3.1联轴器上轴的设计 25
5.4轴的校核 26
5.5键的校核 27
5.6轴承的校核 27
总结 29
致谢 30
参考文献 31
