图书馆小车(AGV)驱动机构设计(含CAD零件图装配图)

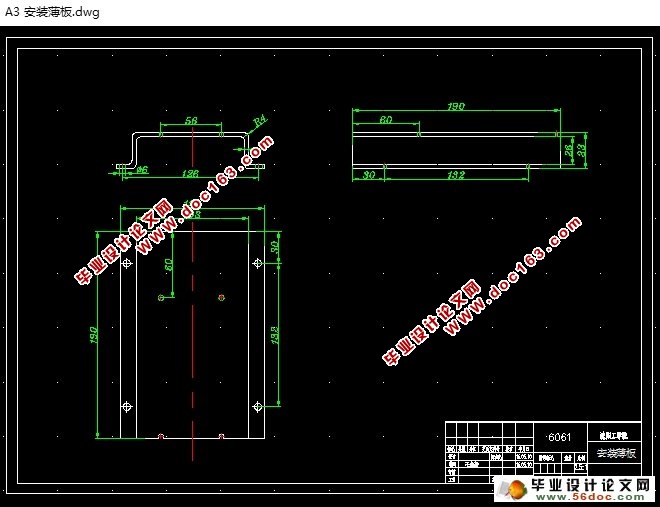

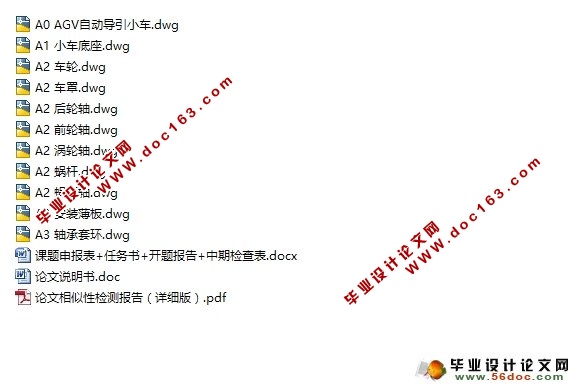

图书馆小车(AGV)驱动机构设计(含CAD零件图装配图)(课题申报表,任务书,开题报告,中期检查表,论文说明书10500字,CAD图纸11张)
摘 要
跟着生产的智能化、电脑集成制造体系水平的逐渐成长以及柔性生产体系、智能化三维仓库的大范围使用，智能车简称AGV (Automatic Guided Vehicle)就是自动引导车成为关联和调节离散型物流运输系统并且让它工作不间断化的重要的智能化运输装卸技术，他的使用区域和技术水平达到了高速的发展。
智能车是用微型控制器当做控制焦点、蓄电池为供能装置、装有非接触引导装置的无人驾驶自动 导引运载车，他的智能工作的主要任务是导向前进、选取地方停车准确并且移交载荷。成为现代物流生产智能化的有用技术和柔性生产系统的重要设备，智能车得到了更加多方面的使用，对智能车的设计也拥有很重要的现实意义和理论意义。
   此次论文包涵了 智能车在国内外的成长现状和使用情况，在此基础上，联系毕业设计的课题 基本规定，其研究内容主要包括以下几个方面
  1. 本文论述了智能车系统的组成方式和路径引导方式的指导原则，以及联系课题的要求，采用“红外制导系统的引导模式。
  2. 讲述了智能车身机械构造的设计，并按照小车的驱动形式和工作任务，重点对底盘、电 机、蓄电池等完成了设计和选则型号。

[资料来源：www.doc163.com]

  3.按照智能车系统的控制和工艺规定，明确了操控系统的整体框架构造。硬件地方，采用合理的传感器、单片机以及电机驱动装置，对传感检测电路和单片机操控系统硬件电路完成了设计任务：软件方面，采用模块化的编程方式来实现系统的各种功能，并实现了单片机与 电机控制器之间的串口通信。
   4. 在归纳全文的原则上，并对智能车的设计和研究提出了想法。
关键词：智能车；驱动控制电路；控制策略；行走策略；

ABSTRACT
With the growing of Factory Automation, Computer Integrated Manufacture System and extensive application of Flexible Manufacture System、Automatic Warehouse, the application field and technical level of AGV which contact and adjust the discrete logistics system, make the mission continuous, has greatly enlarged and improved.
AGV is the unmanned driver automatic guided vehicle which has its untouched guided equipment, its control center is the microcontroller and storage battery is driving power, its basic function of automatic action is guided driving, recognizing the address to stop precisely and remove the load. As the valid measure of contemporary logistics processing automation and the key equipment of flexible manufacture system, the AGV has already got more and more extensive application, so that the research on AGV has very important theory meaning and realistic meaning.

[资料来源：Doc163.com]

The dissertation introduced the applications and developments of AGV at home and abroad. Combining with the request of this graduation project topic, we designed a whole infrared rays guided vehicle.
The main work in this dissertation was arranged as follows:
1.    The constitution of AGV system, the path guided means and their principles were discussed. According to the requests of the topic, infrared rays guided method was used in the AGV system.
2.    The design of AGV mechanical structure was introduced, in terms of driving manner and working requests, the type of the chassis, electrical motor and storage battery etc. was chosen and designed.
3.    According to the control and the craftwork requests of the AGVS, the total frame structure of control system was designed. About hardware, the right sensor, MCU and motor controller had been chosen, the sensing circuits and MCU controlling hard circuits was designed, about software, to achieve many system  [版权所有：http://DOC163.com]
4.    functions, and to realize serial communication between the MCU and motor controller, blocking programming method was employed.
Key words: AGV; MCU; Drive and control circuit; Running string


目录：
摘 要    I
ABSTRACT    II
第1章  绪论    1
1.1  AGV小车发展现状研究    1
1.2图书馆AGV小车发展    2
1.3  本课题主要工作    3
第二章  图书馆AGV小车驱动机构设计及原理分析    4
2.1 小车驱动机构设计与原理分析    4
2.2  小车驱动机构零件选型    7
第三章 图书馆AGV小车驱动机构设计计算    8

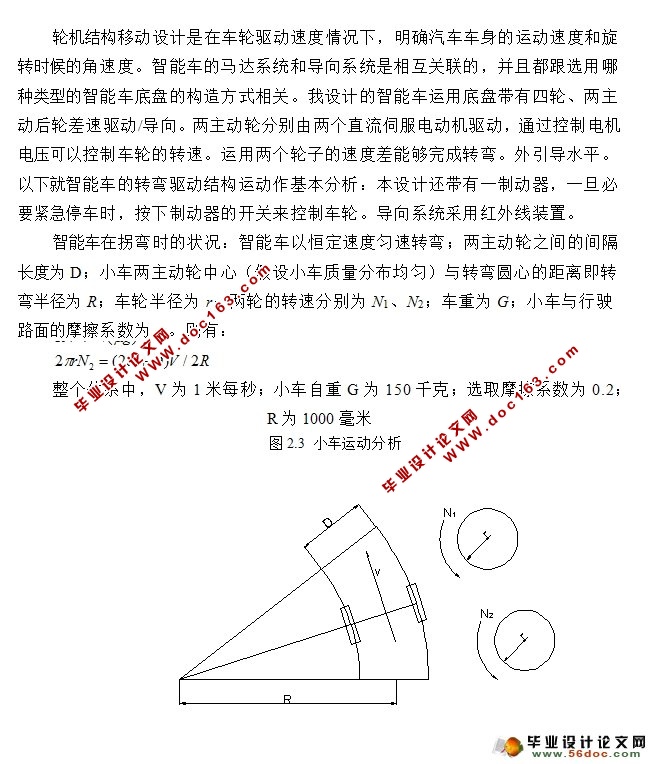

3.1 小车运动分析    8
3.2  电机扭矩转速分析    9
3.3  传动轴设计计算    11
3.3.1  选择蜗杆的传动类型    11
3.3.2  选择材料    12
3.3.3  蜗杆传动的受力分析    12
3.3.4  按齿根弯曲疲劳强度进行设计    14
3.3.5  蜗杆与蜗轮的主要参数与几何尺寸    15
3.3.6  热平衡核算    16 [来源：http://Doc163.com]
3.4  轴的设计    16
3.4.1  前轮轴的设计    16
3.4.2  后轮轴的设计    19
第四章 工程图设计    25
4.1装配图设计    25
4.2  零件图设计    25
第五章  结论与展望    28
5.1 设计结论    28
5.2研究展望    28
参考文献    29
